OSRAM SYNIOS™ P2720, KW DMLQ33.SB

New
×
New

Description

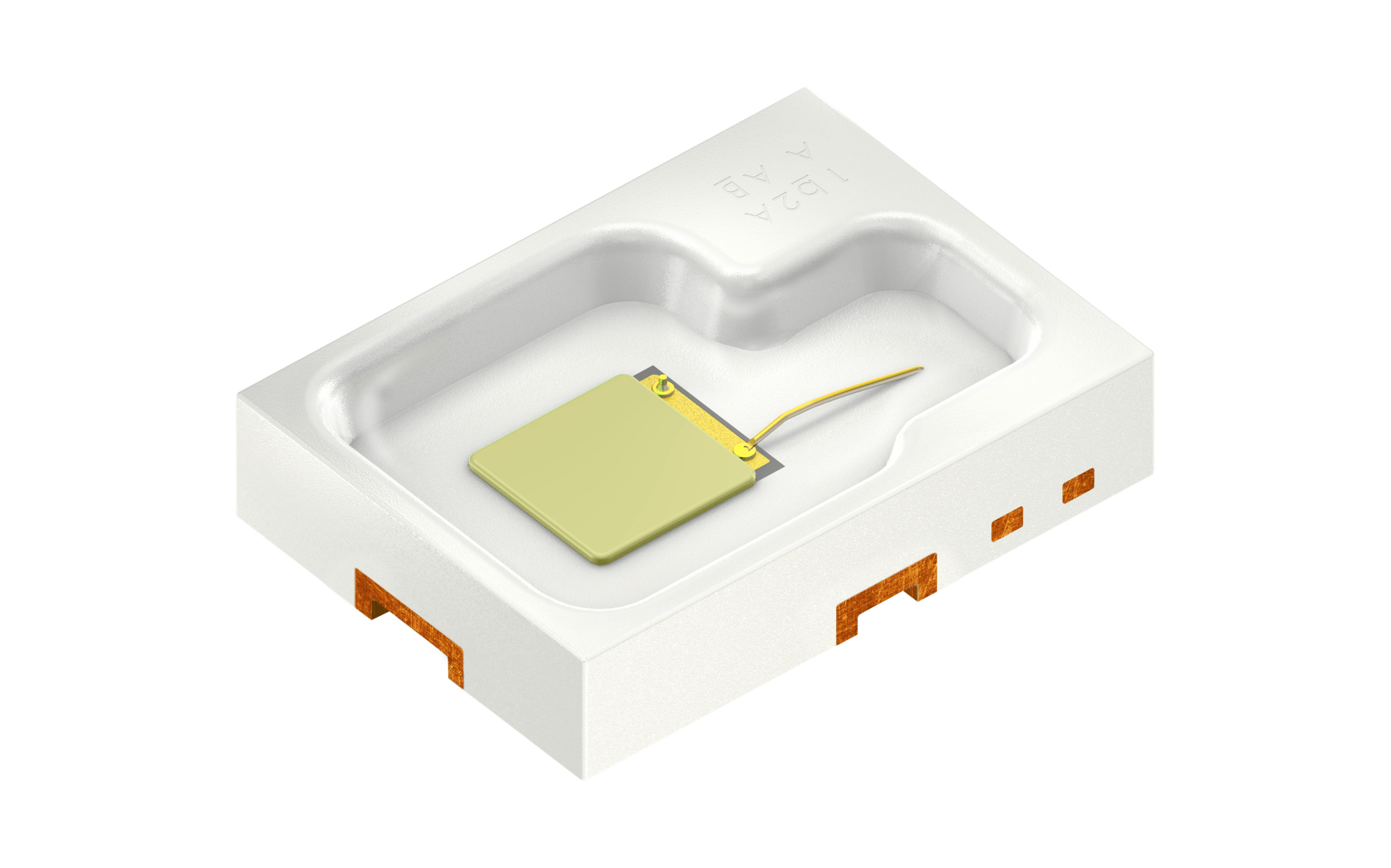

This compact LED device is part of the SYNIOS P2720 family. Given the scalability of this product family, it provides full performance and flexibility with just one footprint. The KW DMLQ33.SB product is meant to provide superior light quality in ½ mm² chip size class.
Datasheet
KW DMLQ33.SB
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
2.2 W
High
Brightness
ΦV
130 lm
IV
43 cd
ΦE
491 mW
IE
163 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
2.75 mm
w
2.0 mm
h
0.6 mm
Device qualification
AEC-Q102
